    SPARE PARTS - Z-RAY - LED BOARD

    Regular price £60.00
    Tax included.

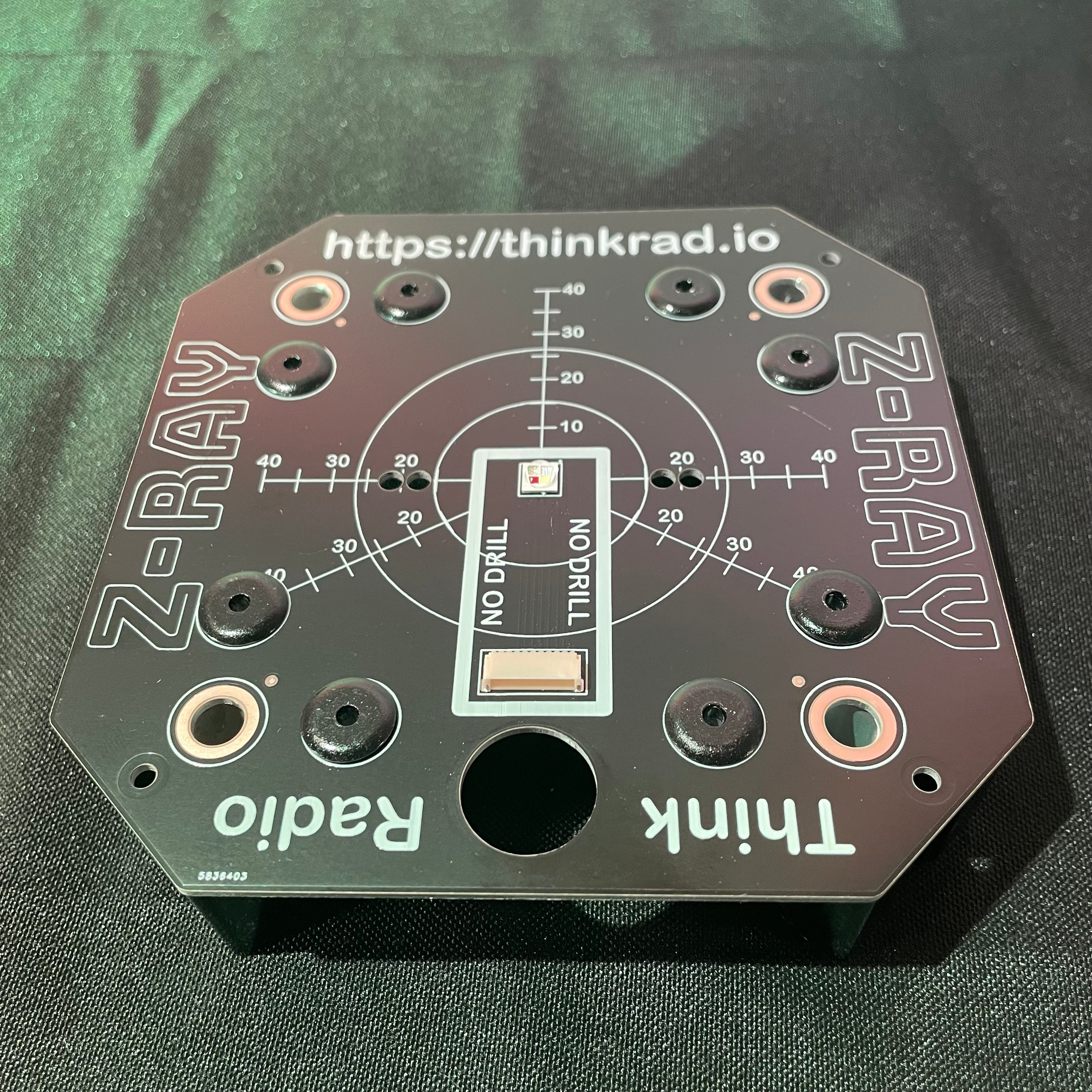

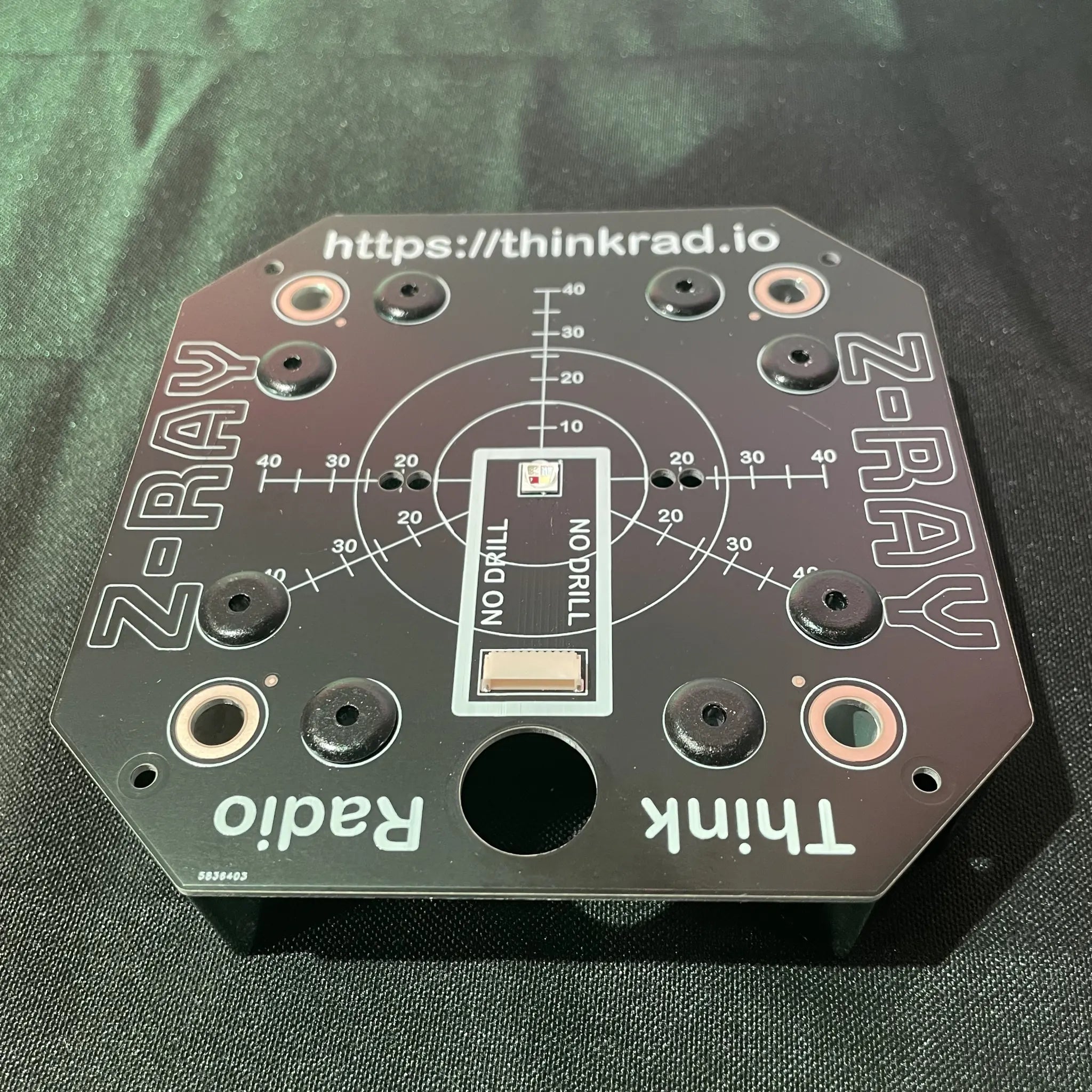

    LED circuit board for Z-RAY.

    This comes complete with with all PCB-mounted components, including the Cree XLamp® XM-L® Color LED.

    It does not include any of the lens components (lens, lens mount, and fastenings - these are available in the Z-RAY ZORYA, or Z-RAY FRESNEL lens kits) or non-soldered components (jumper-cable to Z-RAY main board, grommet, or fastenings - these are available in the Z-RAY small-parts kit).

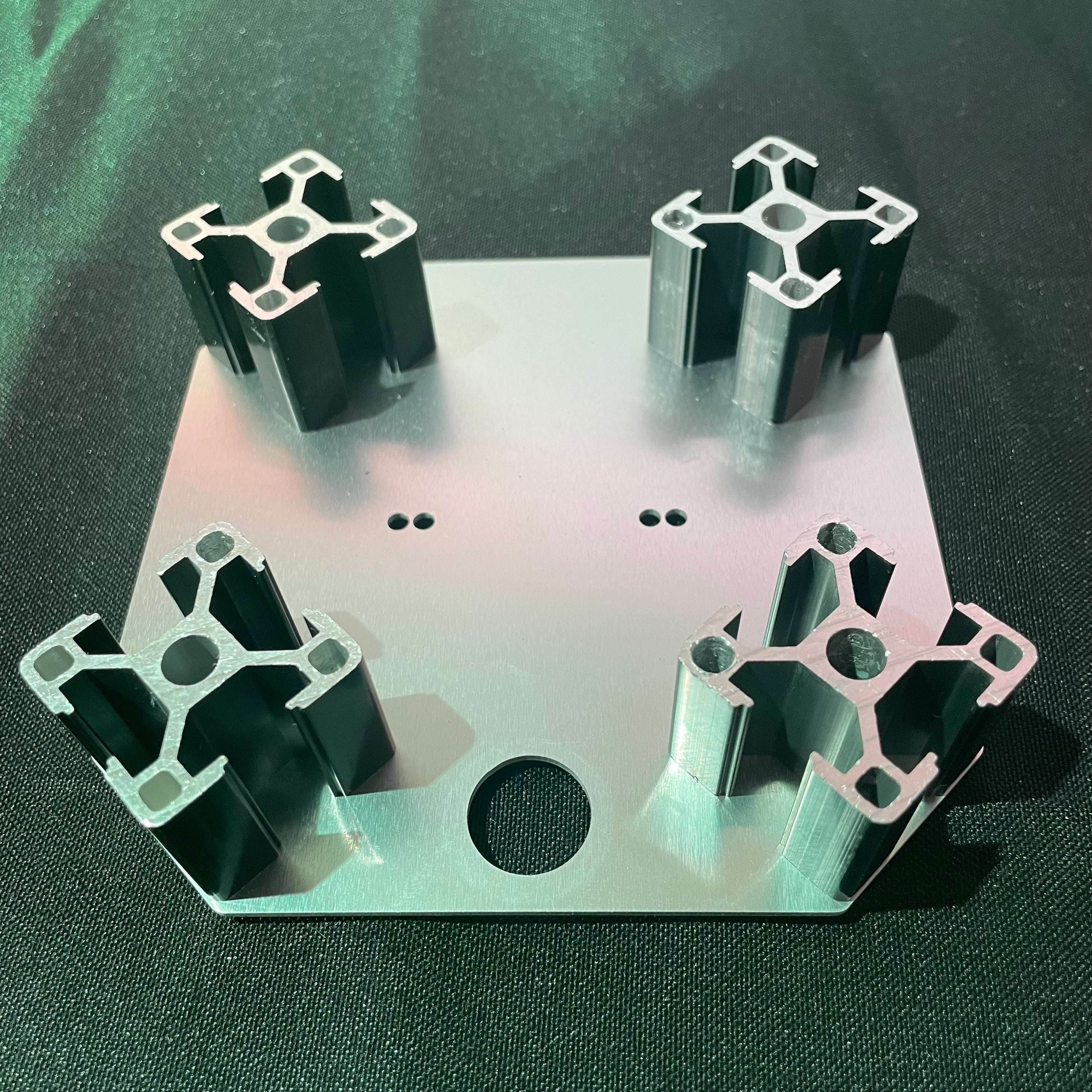

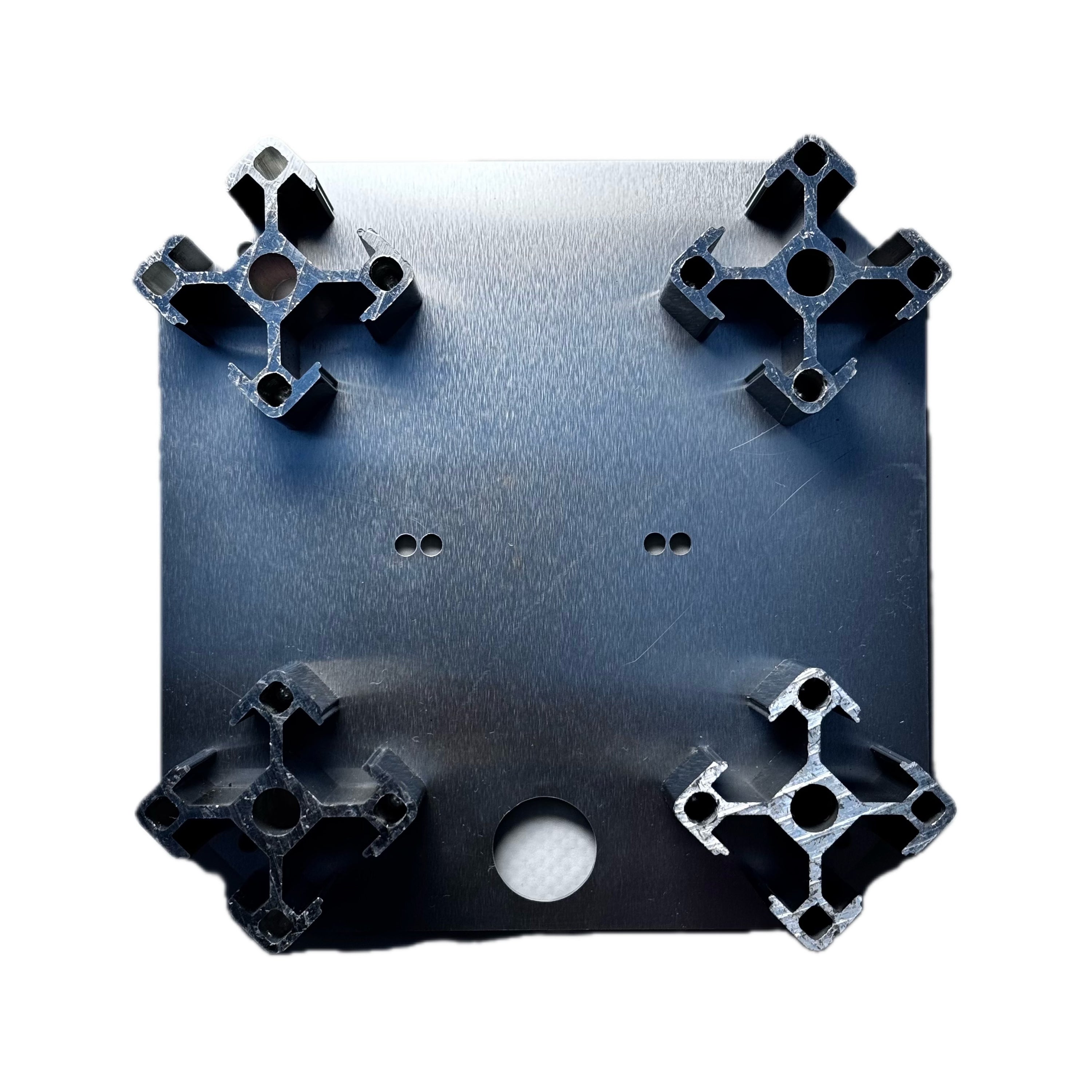

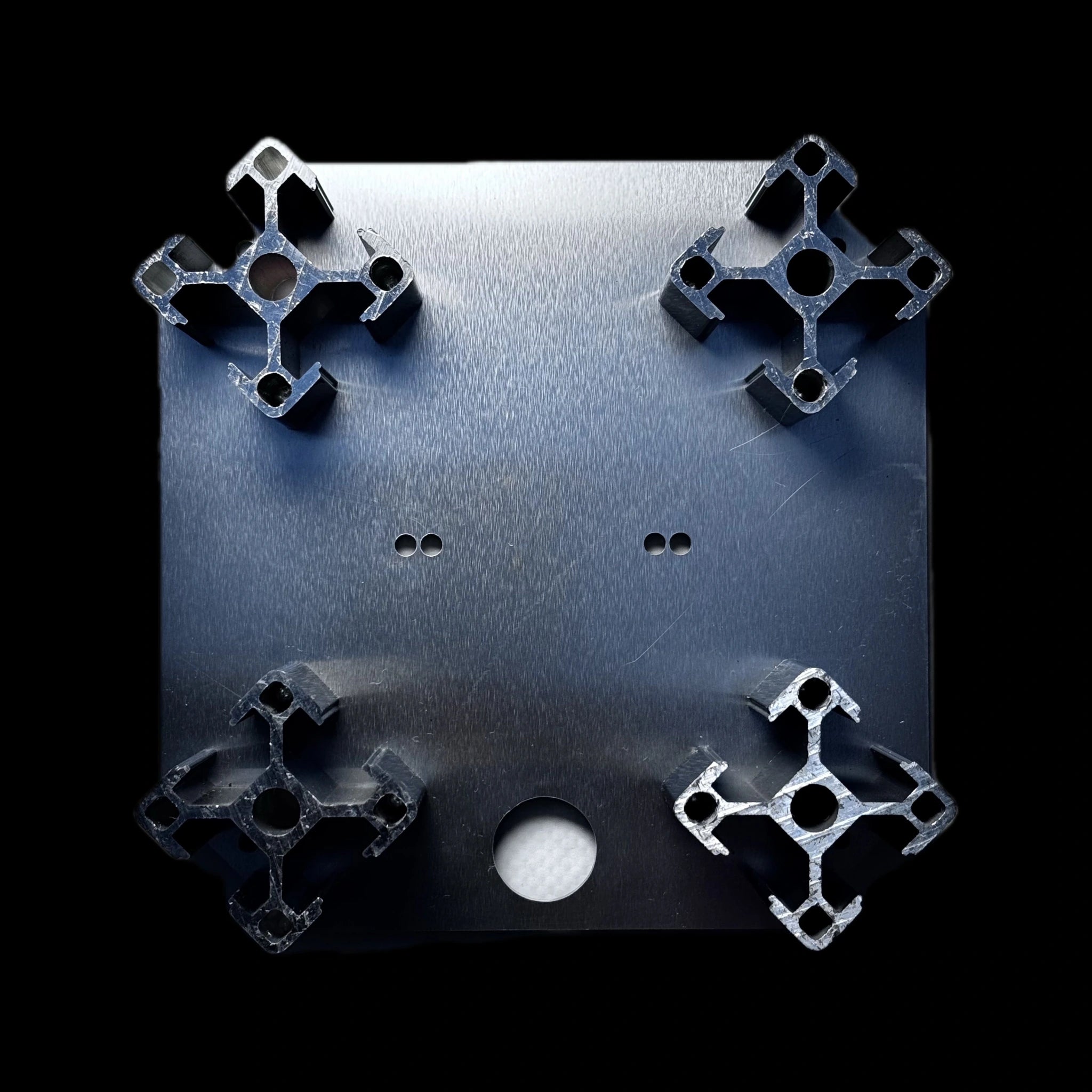

    Note that the 3030 aluminium heatsink/spacers are permanently riveted to this board.

    Note that this is an all aluminium circuit board, and along with the aluminium heatsink/spacers - that whilst disassembled - unaligned contact with the main Z-RAY circuit board may produce electrical short-circuits that could result in dangerously short-circuiting the lithium battery and/or permanent damage to other electronic components.

    Dimensions: 120 mm (4.7 inches) width, 120 mm (4.7 inches) length, 30 mm (1.2 inches) thickness.

    Weight: 0.150 Kg (0.33 pounds).
