SPARE PARTS - Z-RAY - MAIN BOARD

Name: SPARE PARTS - Z-RAY - MAIN BOARD
Brand: Think Radio Ltd
SKU: TR-SPARE-Z-PCB-MAIN
Price: 100.0 GBP
Availability: InStock

£100.00

Tax included.

Quantity:

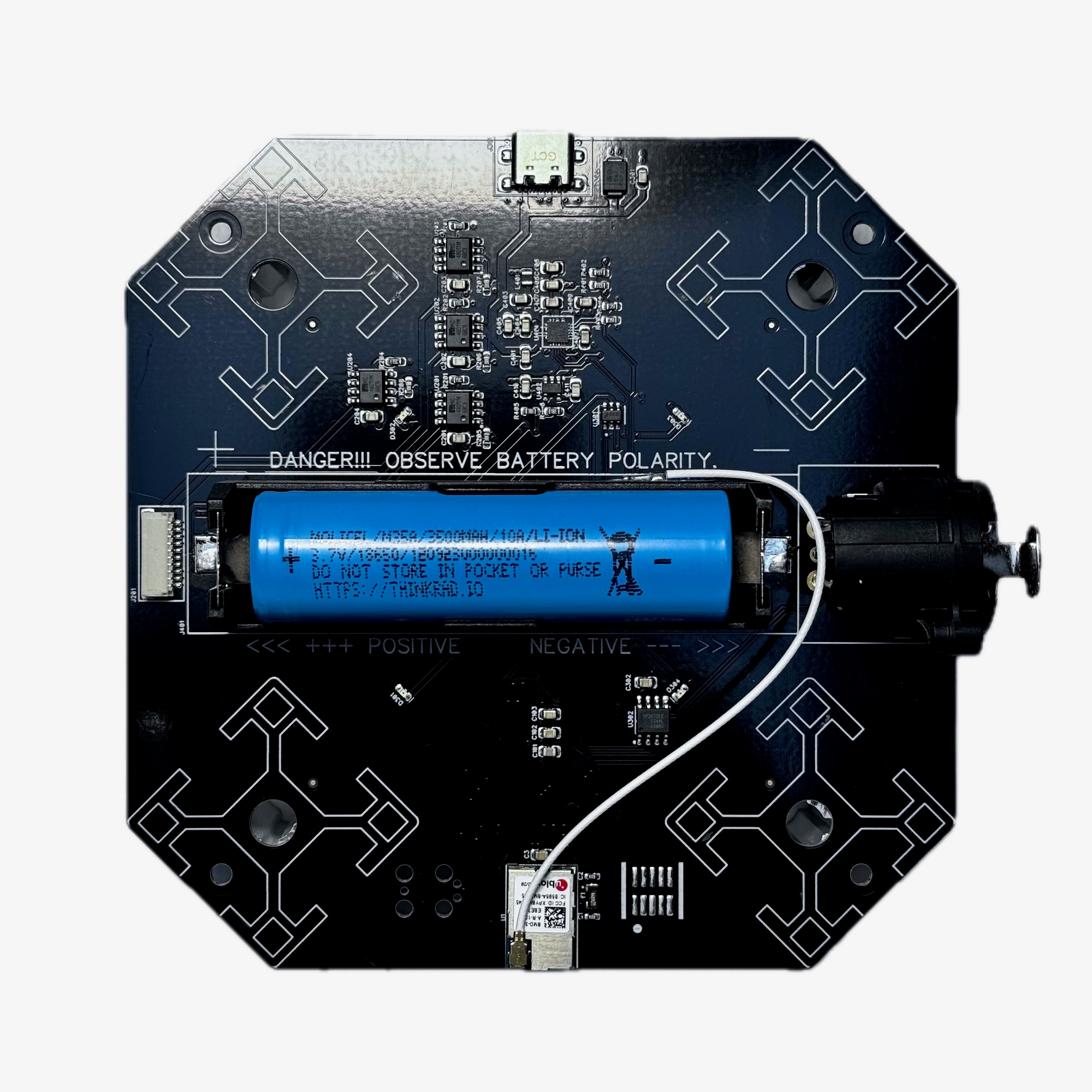

Main circuit board for Z-RAY.

This comes complete with with all PCB-mounted components (including LCD screen, battery holder, lithium battery, board jumper connector, USB connector, DMX connector, and push buttons).

It does not include any of the non-soldered components (antenna, jumper-cable to LED board, or fastenings - these are available in the Z-RAY small-parts kit) - apart from the battery.

Note that the characteristics of the 18650 lithium battery are exactly matched to the battery-management system on this PCB - and for safety-reasons should not be be changed for a less capable battery.

Do not short-circuit this battery.

Do insert the battery in the wrong orientation.
Reversing the polarity may also cause permanent damage to this circuit board.

The LCD display is fixed to this circuit board with double-sided tape.

Dimensions: 120 mm (4.7 inches) width, 120 mm (4.7 inches) length, 22 mm (0.87 inches) thickness.

Weight: 0.120 Kg (0.26 pounds).
